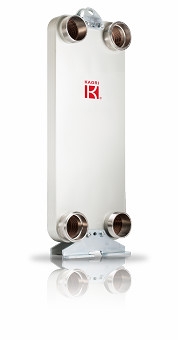

Diagnol Flow BPHE
Z series is designed with diagonal flow pattern, featured in high efficiency and wide range of application. It can be used to replace tube, shell and spiral heat exchangers. The unique pattern of diagonal flow utilizes the transfer area on the plate and refrains the risk of freezing, resulting from water remaining on the corner of plate. This design rises the durability and expands the feasiblity of the application , such as evaporator, condenser, oil cooler, and district heating system.

Industries:
HVAC, Refrigeration, Heat Pump, Chiller, Waste Heat Recovery, Laser Cutting/Welding Machine

Applications: Evaporator,Condenser,De-superheater/Subcooler,Economizer,Pre-cooler/Pre-heater

Heat Load up to (kW): 527.4

Plates Material: SUS316

Brazed Material: Copper

   SI Units
